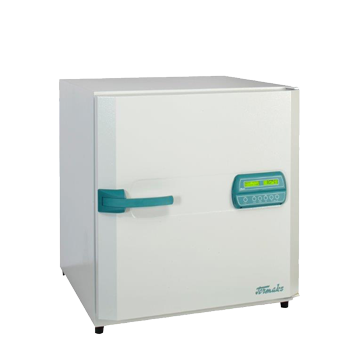

Laboratory Drying Ovens

Termaks forced convention drying and heating chambers for fast drying and sterilization. Designed for excellent temperature distribution with variable fan settings temperature the entire range offers very high temperature stability up to +250°C.

High lights

  • Temperature range up to +250°C
  • 4 model sizes (26 to 430 litres volume)
  • Stackable B9026/9053/9135, optional stacking kit
  • Forced air circulation
  • Automatic and programmable electrical Air valve
  • Safety thermostats and redundant system for maximum protection
  • Data logging and Remote support via Connect
  • Access ports for data logging with external sensors (optional)
  • Castors, lockable for increased mobility (B9430)

Termaks incubator TS-Series is ideal for all applications within drying and sterilization and temperatures up to +250°C. The newly developed control system allows fine tuning at any temperature in the range.

The control system is designed in accordance with EN61010 and has been EMC-tested in accordance with EN 60730-1 and EN 60730-2-14.

The control system is designed in accordance with EN61010 and has been EMC-tested in accordance with EN 60730-1 and EN 60730-2-14. Termaks cabinets can be controlled via CTS, PC or Gateway allowing data logging, event log and more to be stored The system software can be updated directly on the PCB, through the SD-card slot and it is also possible to upload new setpoint files this way.

The TS-series is also available in a version with H14 HEPA filtration on inlet air inner.

Automatic safety thermostat Increased safety – simpler to operate
OLED display Explanatory text – simpler to operate
Touch buttons Extended lifetime in humid surroundings
Software Alternates between two temperatures at specified time, daily or weekly
Extended temperature range Can operate down to 2°C above ambient temperature
Keypad with PIN code Prevents undesirable settings
Potential free alarm contact Can connect to external alarm system
Remote support and logging via Connect
MODBUS communication
Variable fan speed
Electrical controllable Air valve Optimizing drying processes

Advantages:

  • Precise performance
  • Real time programming
  • Intuitive and easy-to-use control panel
  • Air exchange rates and air valve position electronically controllable
  • temperature ramps programmable via display or Connect
  • high-quality, corrosion-resistant and chamber in stainless steel for easy cleaning
  • state of the art heating for a precise and homogenous temperature control
  • Safety thermostats and redundant system for maximum protection
  • Reliable
TS 9026 TS 9053 TS 9135 TS 9430
TEMPERATURE CONTROL
Variation + / – ˚C 1 1 1 1
Deviation (spatial) + / – % 1,5 1,5 1,5 1,5
Readability / Setability ˚C 1 1 1 1
Range ˚C” tb-250 tb-250 tb-250 tb-250
Sensor “K” Yes Yes Yes Yes
Controller PID PID PID PID
Display OLED OLED OLED OLED
TIMER
Standard hours / minutes 99h / 59m 99h / 59m 99h / 59m 99h / 59m
Real time program * Yes Yes Yesv Yes
SAFETY
Alarm flashing / Acoustic Yes Yes Yes Yes
Alarm limit settable ˚C / Acoustic Yes Yes Yes Yes
Automatic safety setting ˚C / Acoustic Yes Yes Yes Yes
FEATURES
Fan speed steps 1/10 1/10 1/10 1/10
Exhaust valve, mm 30×30 30×30 30×30 60×60
Door gasket silicone Yes Yes Yes Yes
Data port, MODBUS Yes Yes Yes Yes
Pot free alarm, output Yes Yes Yes Yes
SHELVES
Standard / Max pcs 2/7 2/8 3/16 3/23
Dimensions W × D mm 346 × 235 434 × 325 534 × 325 602 × 570
Max load pr shelf kg 20 20 20 30
Permitted total load kg 50 50 70 100
HEATING
Heating up time to 250°C mins 40 50 65 20
Heat transfer at 250°C W 400 460 710 1500
POWER
Nominal Power W 930 1430 1430 4600
Nominal voltage V 230 230 230 400
Frequency Hz 50/60 50/60 50/60 50/60
DIMENSIONS
Exterior W × D × H mm 490 × 480 × 500 580 × 575 × 550 680 × 675 × 750 753 × 845 × 1360
Interior W × D × H mm 350 × 255 × 300 440 × 345 × 350 540 × 455 × 555 610 × 600 × 1180
Volume litres 26 53 135 430
WEIGHTS/VOLUME
Net weight kg 20 34 51 120
Shipping weight kg 25 40 60 140
Shipping volume dm3 210 350 558 1280
